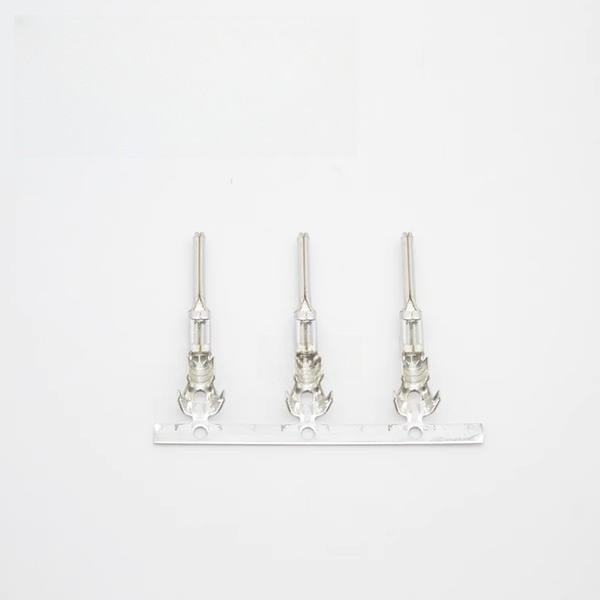

Superseal Series Automotive Terminal 282109-1

Product Item : 282109-1
Category： Terminal
Terminal Type: Tab
Mating Tab Width: 1.5mm
Mating Tab Thickness: 0.8mm
Wire Size (AWG): 18-15
Product description：Automotive Terminals, Tab, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .8 mm [.031 in], 18 – 15 AWG Wire Size, AMP Superseal 1.5mm Series
INQUIRY EMAIL Amazon

Status	Active	Contact Size	1.5mm
Mating Tab Width	1.5mm	Wire Size (mm²)	0.75 – 1.5
Gender	Male	Primary Locking Feature	Clean Body
Sealable	Yes	Terminal Seal Type	Single Wire Seal
Plating Material	Tin	Operating Temperature Range	-40 – 125 °C

Tags: Superseal Series Automotive Terminal 282109-1
