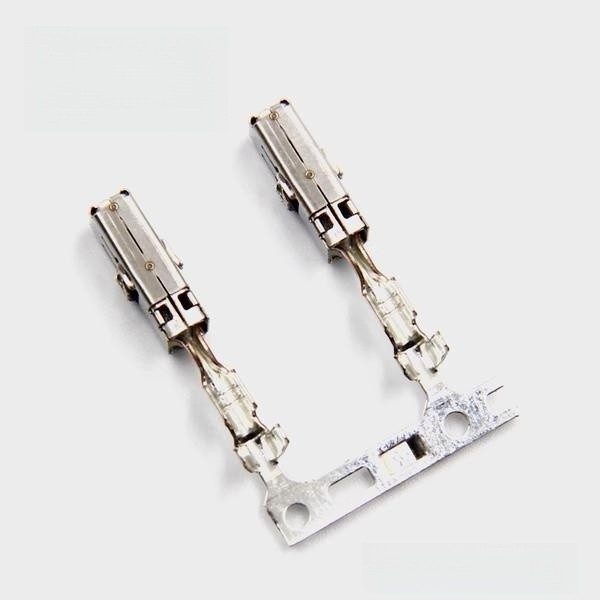

Receptacle MCP Automotive Terminal 1-968849-1

Product Item : 1-968849-1
Category： Terminal
Terminal Type: Receptacle
Mating Tab Width: 2.8mm
Mating Tab Thickness: 0.8mm
Wire Size (AWG): 20-17
Product description：Automotive Terminals, Receptacle, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .8 mm [.031 in], 20 – 17 AWG Wire Size, AMP MCP Connector System
INQUIRY EMAIL Amazon

Status	Active	Contact Size	2.8mm
Mating Tab Width	2.8mm	Wire Size (mm²)	0.5 – 1
Gender	Female	Primary Locking Feature	Locking Lance
Sealable	No	Typical Current Rating (A)	15
Plating Material	Tin	Operating Temperature Range	-40 – 130 °C

Tags: Receptacle MCP Automotive Terminal 1-968849-1
